Our prisms are main suppilied to military industry, aerospace, engineering surveying and mapping projects.
Specification:
Specification:
Material | H-k9L,other |
Surface Quality | 10/5 |
Application | Used in optical surveying instruments |
Dimension Tolerance | 0.03~0.15mm |
Angle Tolerance | 3''~ 10'' |
Flatness | 1/10 Lambda |
Clear Aperture | ≥90% |
Bevel | <0.2±45° or No bevel and Not collapse |
Coating | Enhanced Aluminum Coating or customized |
Type | Optical corner cube prism |

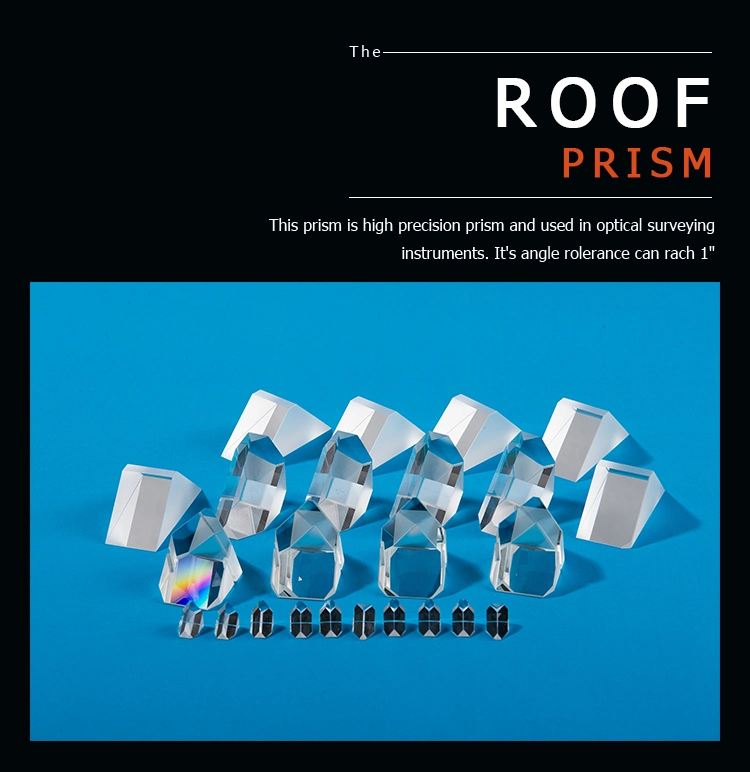

Products Show
