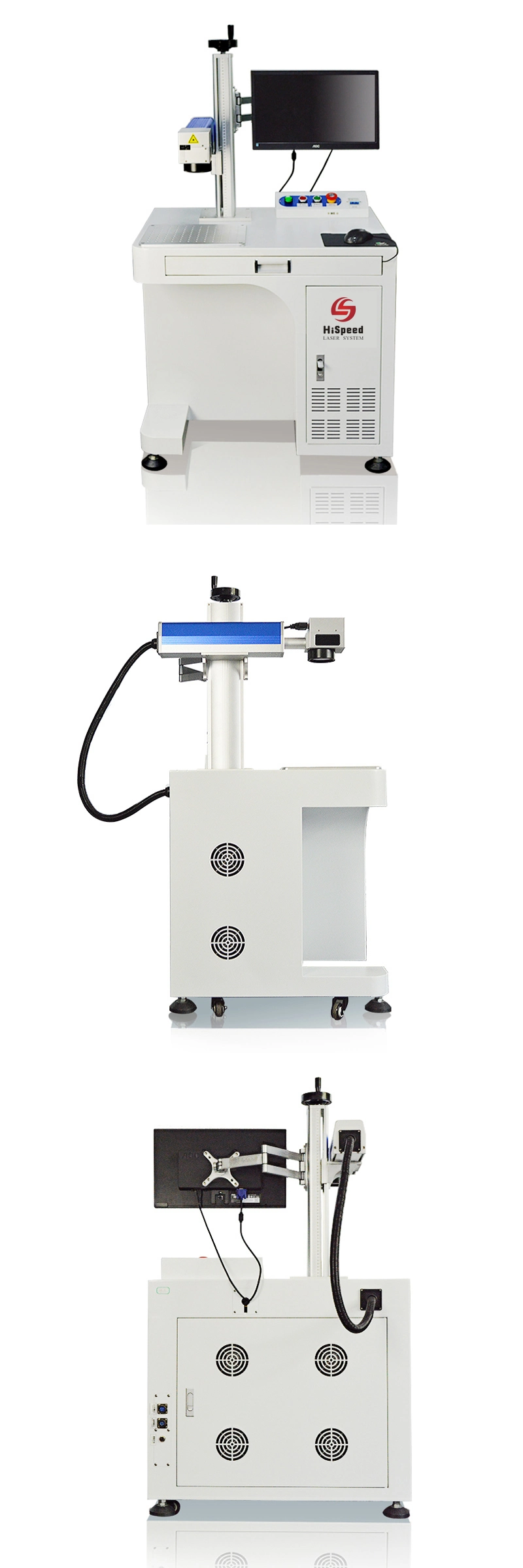

Fiber Laser Marking System Equipment
Speaking of laser marking machine, maybe some people feel unfamiliar?
But you will find: phone shell, Logo, bottle, bar code, keyboard, TV, switch, refrigerator, washing machine,text introduction , printing on the clothes or leather….. All these are marked by fiber laser marking equipment !
Applicable Sample Materials
Laser engraving machine used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons,plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.
√ Electrical Engineering and Electrical part and component
√ Mobile (Cover,battery,keyboard, I Phone Case)
√ Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
√ Building materials,PVC pipe
√ Car motor car spare part ,Insturment and meters and cutting tool
√ plastic case,aviation and aerospace,
√ Military product,hardware fitting and accessory,sanitary appliance
√ Food and beverage ,Medicine package and medical instrument,solar Pv industry
|Output Power||10%-100%(continuously to be adjusted)||10%-100%(continuously to be adjusted)|
|Output Frequency||20KHz-100KHz(continuously to be adjusted)||20KHz-100KHz(continuously to be adjusted)|
|Focus Spot Diameter||<0.01mm||<0.01mm|
|Engraving Speed||800 standard characters/second||800 standard characters/second|
|Minimum Line Width||0.012mm||0.012mm|
|System Operation||Windows XP/2000/98||Windows XP/2000/98|
|Cooling Mode||Air Cooling||Air Cooling|
|Power Requirement||220V/Singlephase/50Hz/<400W||220V/Single phase/50Hz/<400W|
|Life of Laser Module||100000Hrs||100000Hrs|
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 200*200mm, 300*300mm, or customized as your demand.
Looking forward to your inquiry!!!
Contact us quickly and it will surprise you~
